Engine
  • Type: SUBARU448cc, Water cooled, 4-stroke, 1-cylinder
  • Bore x stroke: 96mm x 64.6mm
  • Compression Ratio: 10:8:1
  • Max. power: 29.8kw/8000rpm, 40HP
  • Max. torque: 36.0N.m/8000rpm
  • Carbureation: Mikuni BSR42
  • Ignition: CDI
  • Starting: Electric
  • Transmission: R-1-N-2-3-4-5
  • Drive Train: Chain
Chassis
  • Suspension/Front: Independent double swing arm
  • Suspension/Rear: Single Swingarm
  • Brakes/Front: Dual ventilated hydraulic disc
  • Brakes/Rear: Ventilated hydraulic disc
  • Tires/Front: AT 21x7 - 10 radial
  • Tires/Rear: AT 20x10 - 9 radial
Dimensions
  • LxWxH: 1790m x 1100mm x 1155mm
  • Seat Height: 830mm
  • Wheelbase: 1260mm
  • Ground Clearance: 250mm
  • Fuel Capacity: 8.8L
  • Dry Weight: 200kg
  • Loading Quantity: 12pcs/20' GP; 26pcs/40' GP; 36pcs/40' HQ
Other
  • Lighting: 12V35W/35Wx1; 12V.5W/21Wx1 (rear)

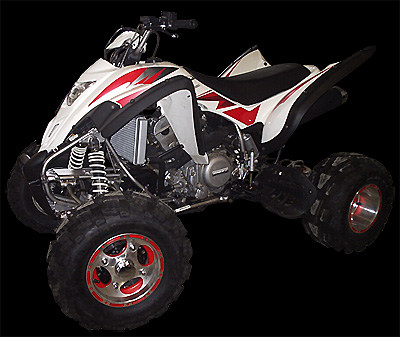

Motobishi Chase 450cc
