Engine
  • Type: 686cc, Water cooled, 5-valve, 4-stroke, 1-cylinder
  • Bore x stroke: 102mm x 84mm
  • Compression Ratio: 9:2:1
  • Max. power: 25.0kw/5000-5500rpm, 33.5HP
  • Max. torque: 49.0N.m/5000rpm
  • Carbureation: PD42J
  • Ignition: CDI
  • Starting: Electric/pull Start
  • Transmission: L-H-N-R Drive
  • Train: Axle
Chassis
  • Suspension/Front: Independent double swing arm
  • Suspension/Rear: Independent double swing arm
  • Brakes/Front: Dual ventilated hydraulic disc
  • Brakes/Rear: Ventilated hydraulic disc
  • Tires/Front: AT 25x8 - 12 radial
  • Tires/Rear: AT 25x10 - 12 radial
Dimensions
  • LxWxH: 2250mm x 1210mm x 1225mm
  • Seat Height: 870mm
  • Wheelbase: 1365mm
  • Ground Clearance: 260mm
  • Fuel Capacity: 17L
  • Dry Weight: 319kg
Other
  • Lighting: 12V35W/35Wx2, 12V5Wx2(front); 12V.5W/21Wx1 (rear)

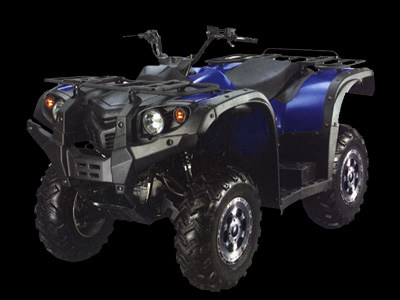

Motobishi Chase 700cc II
